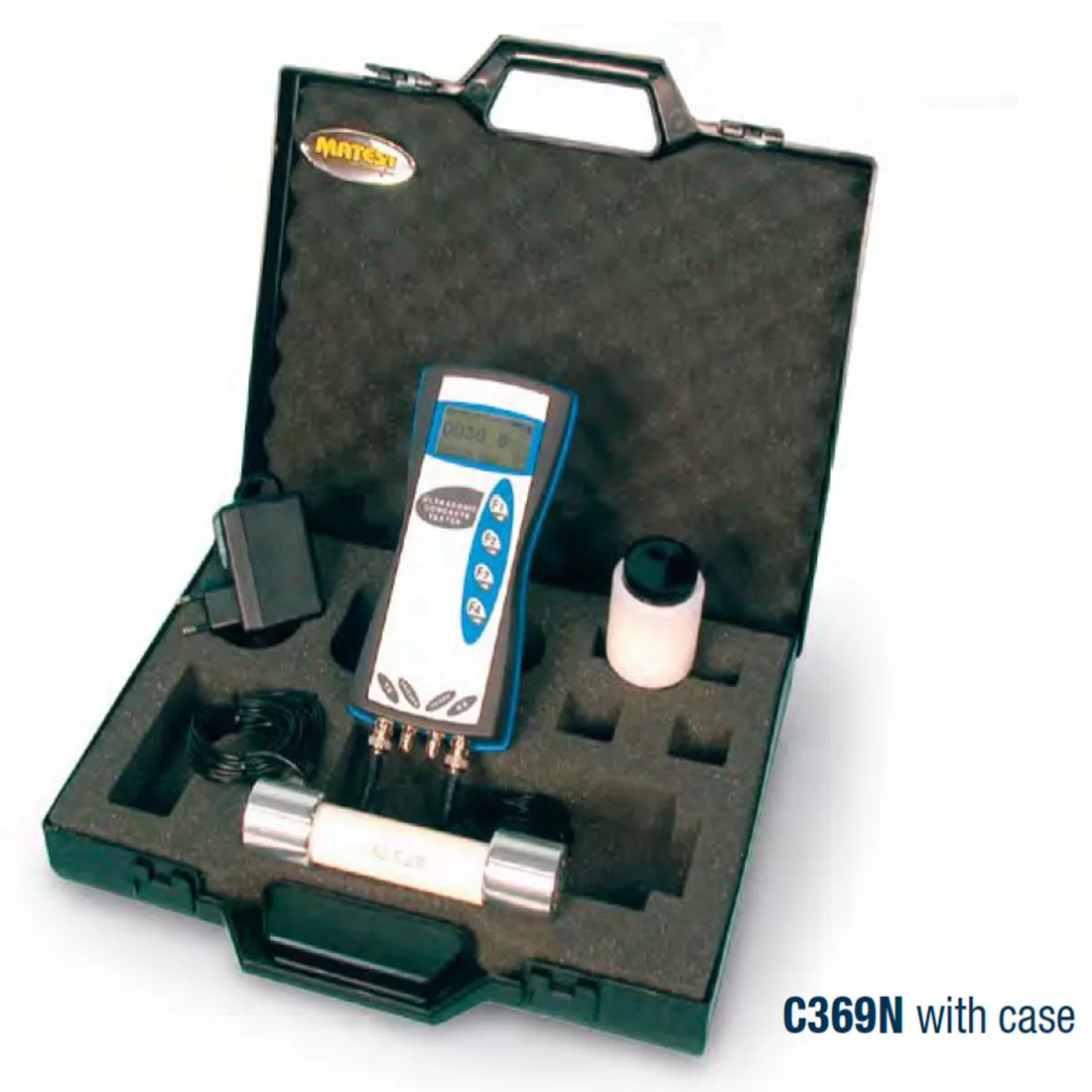

Matest C369N Ultrasonic Pulse Velocity Tester :: Robust(OEM) Brand Surveying Instruments

Category: NDT Testing Equipment

Matest C369N Ultrasonic Pulse Velocity Tester it is possible to have indicative data of the strength of the concrete.

Measuring range: 0 – 3000 µs – accuracy +/- 0,1 µs
Selection of the ultrasonic pulse amplitude adjustable from 250 to 1000V
Measurement of the required time by the ultrasonic pulse to go through the tested material.
Single or continuous acquisition mode with automatic or manual saving.
Zero calibration with depuration of the time for the pulse to go through the probes.
Calibration of a defined time value.
Capacity of data acquisition, processing and filing of the test data up to 30.000 samples.
Interface mini USB for PC connection.
Two outlets for connection to the oscilloscope.
Languages: English, French, German, Spanish, Italian.
The use of the instrument is made easy because it is based on the user-friendly system.

Specifications:

Standard	EN 12504 PART. 4, ASTM C597, BS 1881:203, NF P18-418
Model	C369N
Origin	Italy
Make/ OEM	Robust
Warranty	This Warranty covers the defects resulting from defective parts, materials or manufacturing, if such defects are revealed during the period of 12 months since the date of purchase.
Picture	All pictures shown are for illustration purpose only. actual product may vary due to product enhancement.
